Zone Control

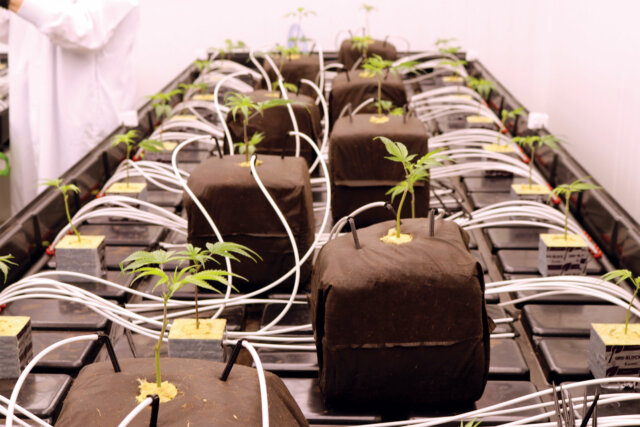

Irrigation systems: mechanical components and practices

by Shaye Donald and Marisol Camacho

Zone Control
Download Whitepaper 842.29 KB Schedule a consultation

Zone Definition: A zone is the area within an irrigation system that is controlled by a control valve. This can theoretically be as small as one plant, and as large as a multi-acre field.

It is recommended to have three key components at the beginning of each zone: a control valve, a filter, and a pressure regulator.

There are many more additions that can be included per zone, but these three components are the most essential pieces when designing a system. This diagram shows the standard layout used in HGC Irrigation designs.

Zone Control
Standard Hawthorne irrigation system design with key components.

It is good practice to include a manual bypass for solenoid and filter maintenance. It is also a good idea to put the pressure regulator downstream of the solenoid valve as they are often not rated for sustained pressure.

Now that you understand the 3 basic components of zone control, let’s dive deeper into each component.

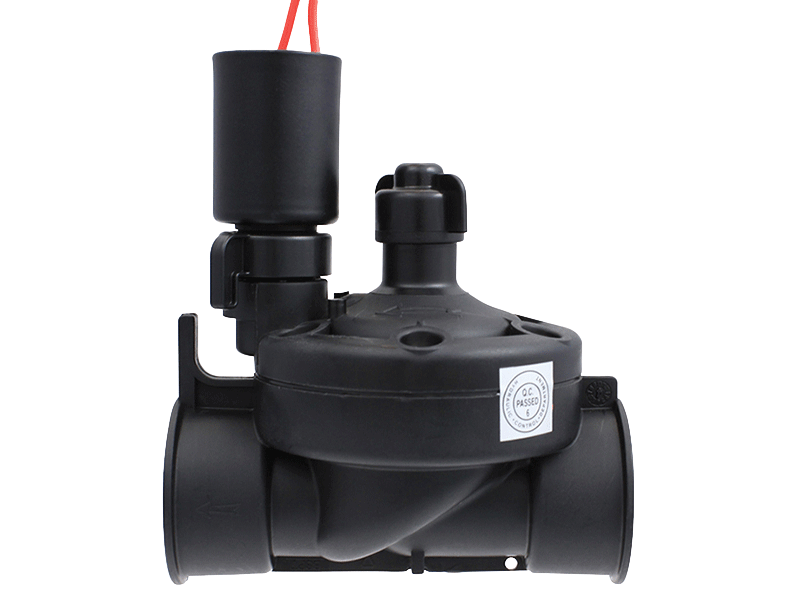

Solenoid Valves

Solenoid control valves are the piece of equipment that allows for automated irrigation to be automated! Referred to as a solenoid, globe or simply as an electric control valve, this item turns on or off (open or closed) when a signal is sent by an irrigation controller. When the valve is open, then the water flows. When the water flows, our plants are happy and watered!

Filters

A filter is the difference between having an irrigation system that lasts for 5 years or 5 weeks. The path that water has to travel through inside a drip emitter is small. Very small! Filters prevent any particulates from clogging drip emitters. HGC always recommends a disc filter with a micron size of 130 or less. Mesh and micron do not have a proper mathematical conversion rate. These numbers are commercial approximations provided by Netafim.

You might be thinking, “yeah well my water is clean, bro.” Or, “I have the purest nutrients that dissolve completely! Why should I filter my water, again?” While most irrigation systems have a primary method of water filtration, having another filter right before the bench adds a second level of protection from clogging in your drippers.

Nobody wants to put all this care and attention into designing and installing a system only to have drip emitters clog!

Finer filtration ⟶

Micron40025017712510510074
Mesh406080120140150200

Note: Micron and mesh are two numbers which correspond to the level of filtration that a given filter is capable of.

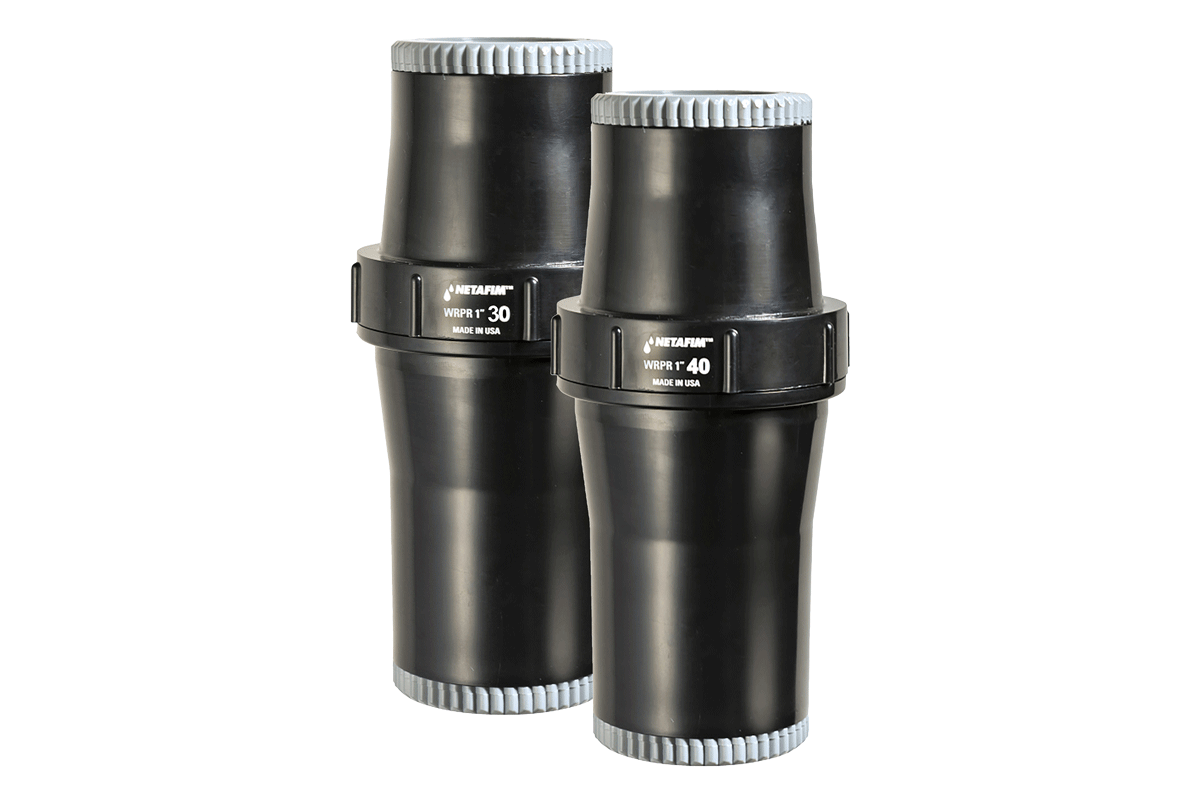

Pressure Regulators

Pressure regulators, well, regulate pressure. As long as the pressure before the regulator is higher than the rated set point (commonly 30 or 40 psi) then the outlet pressure remains regulated at the same psi. Since drip systems work best within a range (15-50 psi, in general) it is important to install regulators on each zone to ensure uniformity.

Note: Always double check the flow rating on the pressure regulator. These devices will only operate properly within a certain flow.
